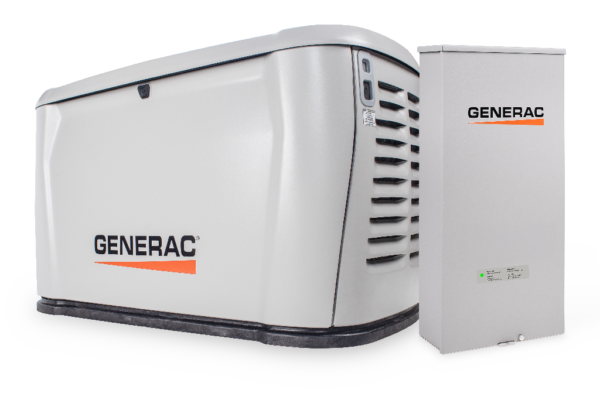

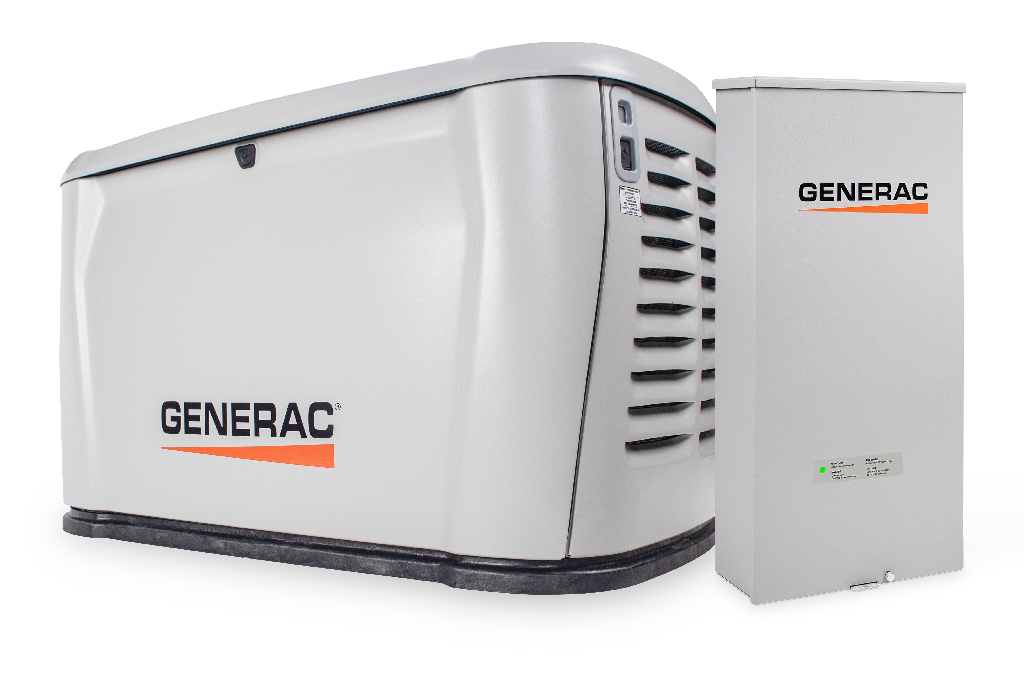

Guardian 14 kW – Full House

Model 7223 Manufacturer

NEW IN 2021! The 14kW Generac Standby Generator with Aluminum Enclosure and equipped with Wi-Fi Mobile Link remote monitoring automatically restores backup power to your home during an outage. The number 1 selling brand in America, seven out of ten homeowners choose Generac Guardian over all other home standby generator brands.

Description

Mobile Link™ Remote Monitoring FREE with every Guardian Series Home Standby Generator

Allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. With Mobile Link, you are taken care of before the next power outage.

Automatic Operation

Don’t worry about having to be there to start and turn off your Generac home backup generator because it does that automatically–whether you’re home or away.

Refueling Not Necessary

Your Generac home backup generator runs on your existing natural gas or LP fuel supply. Save the gas cans for your other outdoor power equipment.

The #1 Selling Brand of Home Backup Generators

Generac created the home backup generator category. Today, our generators are preferred by most homeowners who invest in home backup power.

Power Directly to Your Home

You’ll never have to run an extension cord through a window or door again. Your Generac home backup generator safely delivers power right to your home’s electrical panel.

Get a Quote

Get Financing

Flexible financing available through Synchrony

Specifications

Model
Model Number 7223
Manufacturer Generac Power Systems
Made In USA Yes
Rated Watts 14kW LP / 14kW Natural Gas
Rated Amps 58.3 Amps LP / 58.3 Amps Natural Gas
Voltage 120/240-Volts Single Phase
AC Ton Rating 5-Ton
Enclosure Aluminum
UL Listed UL-2200
Decibel Rating 7m 65 dBA Normal Load / 55 dBA Quiet Test
Type Standby Generator
Series Name Guardian Series
Features
Starting System Automatic
Low Oil Alert Low Oil Shutdown
Mainline Breaker 60 Amps
Battery Requirements 12-Volt Group 26R 540 CCA or Group 35R 650 CCA
Mounting Pad Composite Base Attached
Weight 385 lbs
Dimensions 48L x 25W x 29H
Engine
Engine Brand Generac G-Force
Engine Size 816cc
Engine RPM 3600
Cast Iron Sleeve Spiny-Lok Cast Iron Cylinder Walls
Cooling System Air Cooled
Alternator
Alternator Type Rotating Field
Frequency 60 Hz
Auto Voltage Regulation Yes
Fuel
Type n/a
Gauge No
NG Power Capacity 14kW
LP Power Capacity 14kW
NG Consumption Full Load 256 Cubic Feet per Hour
NG Consumption Half Load 195 Cubic Feet per Hour
LP Consumption Full Load 3.07 Gallons per Hour
LP Consumption Half Load 1.81 Gallons per Hour
Warranty Information
Consumer Warranty Generac 5-Year Limited Consumer Warranty
Shipping Information
Shipping Dimensions 29H X 24W X 48D
Shipping Weight 385 lbs

Downloads

Sell Sheet

Owner’s Manual

5 Year Limited Warranty

5 Year Extended Warranty

7 Year Extended Warranty

10 Year Extended Warranty
